#include <UserServer.h>

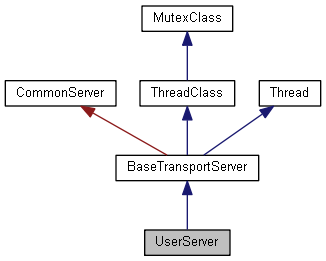

Inheritance diagram for UserServer:

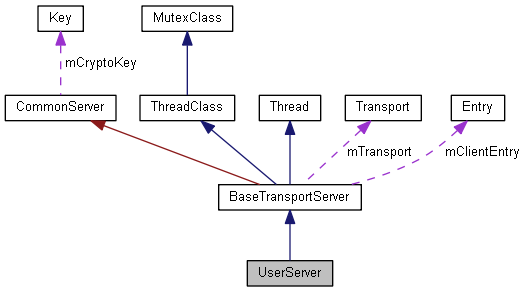

Collaboration diagram for UserServer:
Public Types | |
| enum | { kDefaultPort = 4009 } |
 Public Types inherited from MutexClass | |
| enum | { kNoOwnerThread = -1 } |
Public Member Functions | |
| UserServer (const char *lobbyDSN=MRNLobbyDefaultDSN) | |
| bool | Start (const XPAddress &address=XPAddress(kDefaultPort)) |
| Because this uses a TransportUDP connection it will call XPURL::RegisterDefaultTransports() | |
| size_t | GetNumTotal (void) |
| Returns the total number of users. | |
| Public Member Functions inherited from BaseTransportServer | |
| void | SetEncryptionKey (const void *data, const int length) |
| virtual bool | StartWithTransport (Transport *transport, const bool allowDelete=true, const bool isListen=true) |
| virtual bool | Stop (void) |
| size_t | GetNumConnections (void) const |
| Returns the number of active connections. | |
| size_t | GetNumTotalSessions (void) const |
| Returns the total number of connections. | |
| bool | SetAsDisconnecting (Transport *transport) |
| This will put the connection into a list pending disconnection after a timeout period. | |
| Public Member Functions inherited from ThreadClass | |
| ThreadClass () | |
| virtual | ~ThreadClass () |
| void | Sleep (int milliseconds) |
| Public Member Functions inherited from MutexClass | |
| MutexClass () | |
| virtual | ~MutexClass () |
| void | Lock (void) |
| void | UnLock (void) |
| Public Member Functions inherited from Thread | |
| Thread () | |
| virtual | ~Thread () |
| void | Begin (ThreadClass *threaded_class) |
| void | Terminate (void) |
| bool | GetTerminated (void) |
| bool | GetEverTerminated (void) |
| bool | GetIsRunning (void) const |
| void | SetPreferredProcessor (int processor=kReplicaNetPreferredProcessorOSChoice) |
| int | GetPreferredProcessor (void) |
Static Public Member Functions | |
| static int | VerifyUserNonce (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const std::string &userNonce) |
| Verifies the input userNonce and returns the corresponding loginID or UserInfo::kAnyLoginID if the user nonce couldn't be verified. | |
| static bool | GetVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name, std::string &value) |
| static bool | GetVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name, int &value) |
| static bool | GetVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name, float &value) |
| static bool | SetVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name, const std::string &value) |
| static bool | SetVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name, const int value) |
| static bool | SetVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name, const float value) |
| static bool | DeleteVariable (RNReplicaNet::RNODBCSQL::ODBCSQL &sql, const int titleID, const int loginID, const int section, const UserClient::VariableAccess access, const std::string &name) |
| Static Public Member Functions inherited from BaseTransportServer | |
| static SysTimeType | FloatTime (void) |
| Static Public Member Functions inherited from Thread | |
| static int | CallThreadEntry (ThreadClass *thread_class) |
| static int | GetCurrentProcessorNumber (void) |
| static size_t | GetNumAllocated (void) |
| static size_t | GetNumActive (void) |
Additional Inherited Members | |
| Protected Member Functions inherited from BaseTransportServer | |
| virtual bool | PackageAndSendData (Transport *transport, const DynamicMessageHelper &message) |
| The class mutex is locked during the context of this function. | |
| virtual bool | CallbackParsePacketData (Transport *transport, void *data, size_t &length, DynamicMessageHelper &result, Entry &entry) |
| virtual void | CallbackDataReceived (DynamicMessageHelper &message) |
| virtual void | CallbackDataSend (DynamicMessageHelper &message) |
| virtual void | CallbackQueryReplyTime (const float seconds) |
| virtual void | CallbackTidy (void) |
| int | ThreadEntry (void) |
| void | GenerateNewNonce (void) |
| int | GetConnectionNOnce (Transport *transport=0, const Entry *entry=0) |
| Gets the connection's NOnce with respect to a Transport. | |
| int | CalculateConnectionNOnce (Transport *transport) |
| const Entry * | FindEntry (Transport *transport) |
| Protected Member Functions inherited from ThreadClass | |
| void | DoQuitNow (const int returnCode) |
| void | CheckQuit (void) |
| Static Protected Member Functions inherited from ThreadClass | |
| static size_t | GetNumAllocated (void) |
| Protected Attributes inherited from BaseTransportServer | |
| Transport * | mTransport |
| bool | mAllowDelete |
| int | mNOnce |
| std::map< Transport *, Entry > | mConnected |
| bool | mIsListen |
| bool | mClientGotAPacket |
| bool | mClientIsStable |
| Entry | mClientEntry |
| size_t | mNumConnections |
| size_t | mNumTotalConnections |
Detailed Description
This class uses the BaseTransportServer class to implement:
- User account create/authenticate.
- Persistent data storage for each user.
- Friends list.
- Game invites.
- Private messages.
- Chat rooms. User information is stored in the following database tables:
- Users
- UserRelationship
- OfflineMessages
- Variables
- SuperRoomUsers
- AccountBlocked
- UserNonces
- UserNetworkAddressHistory
