#include <NATDetectClient.h>

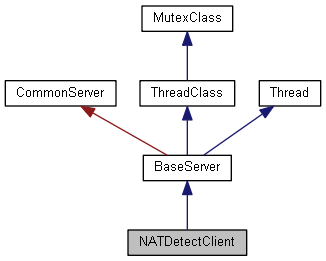

Inheritance diagram for NATDetectClient:

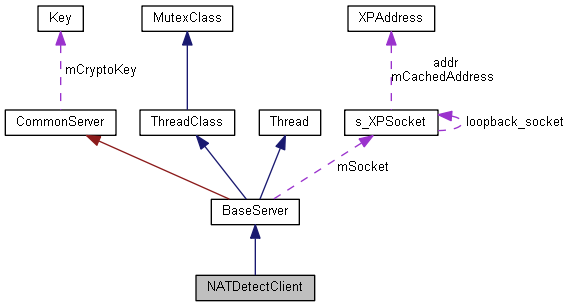

Collaboration diagram for NATDetectClient:
Public Types | |
| enum | NATType { kOpen = 0, kModerate, kStrict } |
 Public Types inherited from MutexClass | |
| enum | { kNoOwnerThread = -1 } |
Public Member Functions | |
| bool | Start (const int channel=TransportAnyGameChannel) |
| void | SetServers (const XPAddress &address1, const XPAddress &address2) |
| Sets the address and port of the servers. The default for the instance of the class is localhost and port NATDetectServer::kDefaultPort and NATDetectServer::kDefaultPort+1 or the address resolved by a successful BackendClient::Start(). | |
| bool | GetCompleted (void) |
| NATDetectServer::Reply | GetReply (void) |
| NATType | GetNATType (void) const |
| If GetReply() == NATDetectServer::kReply_Success this returns the type of NAT calculated by this class. | |
| XPAddress | GetPublicAddress (void) const |
| Returns the public internet address of this computer as seen by the NATDetectServer. | |
| virtual void | CallbackCompleted (void) |
| A virtual callback that is triggered when the NATDetect calculation is complete. GetReply(), GetNATType() and GetPublicAddress() can be used during this callback or at any time after completion. | |
| void | GetAddressReplies (XPAddress &addr1, XPAddress &addr2) |
| Gets the two addresses as seen by the NATDetectServer. | |
| Public Member Functions inherited from BaseServer | |
| virtual bool | StartWithSocket (t_XPSocket *socket, const bool allowDelete=true) |
| virtual bool | Stop (void) |
| void | SetEncryptionKey (const void *data, const int length) |
| virtual void | CallbackDataReceived (DynamicMessageHelper &message, XPAddress &address) |
| virtual void | CallbackDataSend (DynamicMessageHelper &message, XPAddress &address) |
| virtual void | CallbackQueryReplyTime (const float seconds) |
| virtual void | CallbackTidy (void) |
| Public Member Functions inherited from ThreadClass | |
| ThreadClass () | |
| virtual | ~ThreadClass () |
| void | Sleep (int milliseconds) |
| Public Member Functions inherited from MutexClass | |
| MutexClass () | |
| virtual | ~MutexClass () |
| void | Lock (void) |
| void | UnLock (void) |
| Public Member Functions inherited from Thread | |
| Thread () | |
| virtual | ~Thread () |
| void | Begin (ThreadClass *threaded_class) |
| void | Terminate (void) |
| bool | GetTerminated (void) |
| bool | GetEverTerminated (void) |
| bool | GetIsRunning (void) const |
| void | SetPreferredProcessor (int processor=kReplicaNetPreferredProcessorOSChoice) |
| int | GetPreferredProcessor (void) |
Additional Inherited Members | |
| Static Public Member Functions inherited from BaseServer | |
| static SysTimeType | FloatTime (void) |
| Static Public Member Functions inherited from Thread | |
| static int | CallThreadEntry (ThreadClass *thread_class) |
| static int | GetCurrentProcessorNumber (void) |
| static size_t | GetNumAllocated (void) |
| static size_t | GetNumActive (void) |
| Protected Member Functions inherited from BaseServer | |
| virtual bool | PackageAndSendData (t_XPSocket *socket, const DynamicMessageHelper &message, const XPAddress &address) |
| virtual bool | CallbackParsePacketData (t_XPSocket *socket, const XPAddress &addr, void *data, size_t &length, DynamicMessageHelper &result) |
| int | ThreadEntry (void) |
| Protected Member Functions inherited from ThreadClass | |
| void | DoQuitNow (const int returnCode) |
| void | CheckQuit (void) |
| Static Protected Member Functions inherited from ThreadClass | |
| static size_t | GetNumAllocated (void) |
| Protected Attributes inherited from BaseServer | |
| t_XPSocket * | mSocket |
| bool | mAllowDelete |
| int | mNOnce |
Detailed Description
This class interrogates the network connection of a machine to determine the if there is any NAT implemented to known external machines.
Member Function Documentation
| bool GetCompleted | ( | void | ) |
Tests the completion state of the last query. When the query completes the result can be retrieved by using GetReply()
- Returns
- A completed query returns true, a pending query returns false.
| NATDetectServer::Reply GetReply | ( | void | ) |
Returns the last reply from a completed query.
- Returns
- The last reply from a completed query.
| bool Start | ( | const int | channel = TransportAnyGameChannel | ) |
If using a specific game channel for ReplicaNet/XPSession then remember to stop the NATDetectClient service before calling ReplicaNet::SessionCreate()/XPSession::Create() so the game channel is free for ReplicaNet/XPSession to use.
