#include <DataBlock_Predict_Float.h>

Inheritance diagram for DataBlock_Predict_Float:

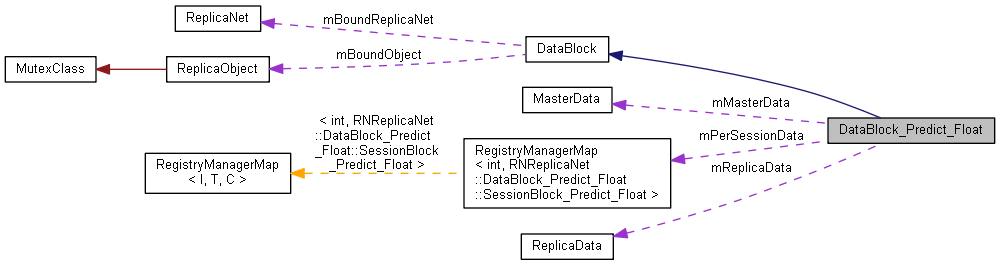

Collaboration diagram for DataBlock_Predict_Float:

[legend]

Classes
struct	MasterData

struct	ParsedData

struct	ReplicaData

struct	SessionBlock_Predict_Float

Public Member Functions
	RN_CLASS_MINIMAL_RTTI ()

	DataBlock_Predict_Float ()

virtual	~DataBlock_Predict_Float ()

virtual void	Poll (DataBlockReason *reason, const bool discardOlderIncluded=false, const unsigned int discardOrder=0)

virtual void	ParseMessage (MessageHelper *message)

virtual void	GiveDeltaHint (void *pdata, int dataLen)

virtual void	GiveDeltaHint (const float delta)

virtual void	ContinuityBreak (unsigned char breakTypes)

virtual bool	GetLastDelta (bool &continuityBreak, float &sample, SysTimeType &time, float &delta)

bool	IsAttached (void *data)

void	RegisterInClassPointer (float *data)

void	SetMinError (float minerror=0.1f)

void	SetMaxError (float maxerror=1.0f)

void	SetMinDistance (float distance=0.1f)

void	SetMaxDistance (float distance=1.0f)

void	SetInterpolationFilter (float interpolation=0.1f)

void	SetQuadratic (void)

void	SetLinear (void)

void	SetLagged (const float time=0.0f)

void	SetSnapToDifference (const float difference=-1.0f)

void	BoundaryEnable (void)

void	BoundaryDisable (void)

void	BoundaryWrapAround (void)

void	BoundaryCapped (void)

void	BoundaryLowerUpper (const float lower, const float upper)

void	BoundaryApplyToMaster (void)

void	BoundaryDoNotApplyToMaster (void)

void	SetValueFloat (void)

void	SetValueShortFloat (void)

void	SetDeltaFloat (void)

void	SetDeltaShortFloat (void)

void	ReplicaContinuityBreak (const SysTimeType time, const float sample, const float delta, const bool continuityBreak, const bool ignoreTimeCheck=false, const bool clearPreviousUpdates=false)

void	SetTimeDelta (const float timeDelta=0.0f)

Public Member Functions inherited from DataBlock
virtual int	GetThisClassType (void)

	DataBlock ()

virtual	~DataBlock ()

void	SetVariableName (const char *name=0)

void	BindReplicaNet (ReplicaNet *current)

void	BindReplicaObject (ReplicaObject *object)

void	SetReliableFlag (bool reliable=false)

bool	GetReliableFlag (void) const

void	SetCertainFlag (bool certain=false)

bool	GetCertainFlag (void) const

void	SetOrderedFlag (bool ordered=false)

bool	GetOrderedFlag (void) const

void	SetDiscardOlder (const int windowBits=0)

int	GetDiscardOlder (void) const

void	SetAutomaticUpdatesFlag (bool automatic=true)

bool	GetAutomaticUpdatesFlag (void) const

void	GiveDeltaHint (float delta)

void	SetForceReflectionUpdate (const bool enable=false)

bool	GetForceReflectionUpdate (void)

void	SetReflectionMasterUpdate (const bool enable=false)

bool	GetReflectionMasterUpdate (void)

virtual bool	IsAllocated (void) const

void	SetIsAllocated (const bool isAllocated=true)

void	SetUpdateDelayMinimum (const float delay=0.0f)

float	GetUpdateDelayMinimum (void) const

void	SetForceSendMaximumUpdates (const int updates=0)

int	GetForceSendMaximumUpdates (void) const

void	SetForceSendTimeDelay (const float delay=0.0f)

float	GetForceSendTimeDelay (void) const

void	SetBand (const unsigned int band=0)

unsigned int	GetBand (void) const

bool	ShouldDiscard (MessageHelper *message)

virtual void	OwnerChanged (const int sessionID)

bool	GetDiscardThisUpdate (void) const

Static Public Member Functions
static DataBlock_Predict_Float *	Register (float *data)

static bool	BoundaryApplyToValue (ReplicaObject *object, float &value)

Protected Member Functions
float	ApplyBoundaryToValue (const float value) const

int	AddDataBlockData (DynamicMessageHelper *message, const float sample, const SysTimeType time, const float delta)

void	FreeSessionBlocks (void)

float	CalculateReplicaValue (DataBlockReason *reason)

Protected Member Functions inherited from DataBlock
void	SetID (int id)

const char *	GetROName (ReplicaObject *from=0)

void	EmitBaseDebugInfo (const char name, const char className, DataBlockReason *reason)

void	EmitBaseDebugInfoUpdates (const char name, const char className, DataBlockReason *reason)

std::string	GetVariableName (void)

Protected Attributes
float *	mData

bool	mContinuityBreak

bool	mIsDistanceBased

float	mMinDistance

float	mMaxDistance

float	mMinError

bool	mIsQuadratic

bool	mGotData

bool	mImplementTeleport

bool	mDoPrep

float	mTestData

float	mMaxError

float	mInterpolationFilter

RegistryManagerMap< int, SessionBlock_Predict_Float >	mPerSessionData

ReplicaData	mReplicaData

MasterData	mMasterData

bool	mDoneMasterPoll

std::map< SysTimeType, ParsedData >	mParsedByTime

float	mLagged

SysTimeType	mFirstLaggedTime

float	mSnapToDifference

bool	mBoundaryEnable

bool	mBoundaryIsWrap

float	mBoundaryLower

float	mBoundaryUpper

bool	mBoundaryWriteBack

SysTimeType	mLastGoodDataTime

bool	mShortValue

bool	mShortDelta

float	mTimeDelta

Protected Attributes inherited from DataBlock
short	mID

ReplicaNet *	mBoundReplicaNet

ReplicaObject *	mBoundObject

bool	mReliable

bool	mCertain

bool	mOrdered

bool	mAutomaticUpdates

bool	mIsAllocated

bool	mDebugOn

char *	mDebugText

float	mUpdateDelayMinimum

int	mForceSendMaximumUpdates

float	mForceSendTimeDelay

char *	mVariableName

unsigned int	mBand

int	mDiscardOlder

unsigned int	mDiscardOlderMidPoint

unsigned int	mDiscardOlderEndPoint

size_t	mDiscardOlderRealSize

unsigned int	mLocalisedOrderingSent

unsigned int	mLocalisedOrderingReceived

bool	mDiscardThisUpdate

bool	mForceReflectionUpdate

bool	mReflectionMasterUpdate

Additional Inherited Members
Public Types inherited from DataBlock
enum	ContinuityBreakTypes { kStop = 1, kSuddenChange = 2, kTeleport = 4 }

Detailed Description

This DataBlock derived class tries to perform data prediction on float variable types.
This class operates on three levels.
1) It constantly checks the data value and notes down changes based on what it thinks are continuity changes using the extrapolation model for the master side.
2) Each {value,delta and time} update sent to a replica object is stored and using this information the extrapolation/interpolation is checked against what the current value is doing. If the extrapolation is too far off based on the input tolerance values then the master copy of the extrapolation data is used to calculate a new more accurate prediction model.
3) The replica version of this class receives {value,delta and time} updates and extrapolates these. When performing extrapolation/interpolation the contents of the class member variable is read and the interpolation filter is used to smooth the update from the contents to the network value. When a continuity break is received the interpolation filter is ignored.
The DataBlock type can also vary the accuracy of the tolerance used dependent on the calculated distance to the observer object for a session. If there is no observer or the distance couldn't be calculated (kReplicaObject_InfiniteDistance is returned by CalculateDistanceToObject) then the minimum tolerance is used.
This DataBlock does allow the Ordered() flag to be set, however it has little use since this DataBlock will automatically reject old updates.

Constructor & Destructor Documentation

DataBlock_Predict_Float ( )

The ctor performs some basic initialisation

virtual ~DataBlock_Predict_Float ( )

virtual

The dtor makes sure everything is tidy

Member Function Documentation

void BoundaryApplyToMaster ( void )

If the boundary value checking is enabled this will also write-back the boundary check to the master's client value. This write-back will happen the next time this DataBlock is polled. The default is for this value write-back to be disabled.

static bool BoundaryApplyToValue	(	ReplicaObject *	object,
		float &	value
	)

static

Utility function to apply the boundary checking rules configured for a Predict_Float DataBlock to a variable. The variable must be registered with ReplicaNet as DataBlock_Predict_Float.

Returns: True is returned if the variable was registered and false if not registered.

void BoundaryCapped ( void )

Use this keyword to set the boundary checks to use a capped value.

void BoundaryDisable ( void )

Disables any boundary checking code.

void BoundaryDoNotApplyToMaster ( void )

Disables BoundaryApplyToMaster().

void BoundaryEnable ( void )

Enable the boundary value checking code. This allows the DataBlock to have wrap around values (for example 0 <= angle < 360) or values that are capped. The upper and lower boundary and wrap around or capped are set by the other Boundary prefixed functions. The default is for this feature to be disabled. If enabled on a master then the user value will not be modified however the internal value used will be capped/wrapped before applying any update filtering. If enabled on a client then the user value will be capped/wrapped.

void BoundaryLowerUpper	(	const float	lower,
		const float	upper
	)

Where lower <= value < upper for wrapped checks and lower <= value <= upper for capped checks.

void BoundaryWrapAround ( void )

Use this keyword to set the boundary checks to use a wrap around value.

virtual void ContinuityBreak ( unsigned char breakTypes )

virtual

This is used by a master ReplicaObject to set a continuity break for the data block and provides useful information to any extrapolation algorithms.

Parameters

breakTypes The break types to use for this break. For example : DataBlock::kSuddenChange | DataBlock::kTeleport

Reimplemented from DataBlock.

virtual bool GetLastDelta	(	bool &	continuityBreak,
		float &	sample,
		SysTimeType &	time,
		float &	delta
	)

virtual

Gets the last delta for this DataBlock. Depending on the ReplicaObject replica or master state this is either the last received delta update or the most accurate calculated delta update.

Returns: Returns true if the delta information has been updated. If false the input values have not been changed.

virtual void GiveDeltaHint	(	void *	pdata,
		int	dataLen
	)

virtual

This is a feedback function used by a master ReplicaObject that enables an application to give a delta hint to a DataBlock. The delta should be expressed in units of change per second.

Parameters

pdata	the pointer to the data type to give a hint for
dataLem	the length of the data type

Reimplemented from DataBlock.

bool IsAttached ( void * data )

virtual

Given a data pointer this function identifies if this data block is attached to the pointer.

Returns: Returns true if the data pointer is attached to this data block.

Reimplemented from DataBlock.

virtual void ParseMessage ( MessageHelper * message )

virtual

This parses a message for the derived class of this data block. If this virtual method is implemented by a derived class the parent method should be called. Implementation note: The same amount of data added to the message during the Poll() must equal the length of data retrieved during this function. Care must be taken when implementing functionality such as GetDiscardOlder() to preserve the length of data. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

message The current message buffer that contains the packet data

Reimplemented from DataBlock.

virtual void Poll	(	DataBlockReason *	reason,
		const bool	discardOlderIncluded = `false`,
		const unsigned int	discardOrder = `0`
	)

virtual

A poll function that is called by ReplicaNet to check for updates to this particular data block. If this virtual method is implemented by a derived class the parent method should be called before a data packet is created. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

reason	the reason code that is passed in to this class to enable a response to be calculated
discardOlderIncluded	When true and using SetDiscardOlder() this gives a hint to the DataBlock that the derived class has filled in a valid value for discardOrder. The default value is false and the DataBlock will use a global discard order seqeunce.
discardOrder	When using SetDiscardOlder() and discardOlderIncluded is true this must contain a valid order sequence number for the update. The sequence should be unique for each target sessionID for the update. Since the sequence number is local for each target sessionID the window size for SetDiscardOlder() can be smaller.

Reimplemented from DataBlock.

static DataBlock_Predict_Float* Register ( float * data )

static

This registers the memory area with this data block type and returns a new pointer

Parameters

data	the start of the memory to check

Returns: Returns a pointer that can be used to attach to a ReplicaObject

void RegisterInClassPointer ( float * data )

inline

This registers the memory area with this data block type. This is used when the memory is in datablocks that are allocated as part of a bigger class.

Parameters

data	the start of the memory to check

void ReplicaContinuityBreak	(	const SysTimeType	time,
		const float	sample,
		const float	delta,
		const bool	continuityBreak,
		const bool	ignoreTimeCheck = `false`,
		const bool	clearPreviousUpdates = `false`
	)

Sets the local replica extrapolation/interpolation, thus causing a local replica continuity break until an update arrives from the network.

Parameters

time	The network time for the update.
sample	The data value.
delta	The delta value applied to the data per second.
continuityBreak	If true this indicates the value should be applied to the prediction calculation directly without an interpolation filter, for example a teleport continuity break uses this.
ignoreTimeCheck	Ignores the time check allowing an older network update to be applied to the prediction calculation.
clearPreviousUpdates	When true and using lagged updates (using SetLagged) this clears any previously received but pending updates.

void SetDeltaFloat ( void )

Set this DataBlock to use full 32 bit floating point values when propagating the value. This is the default option.

void SetDeltaShortFloat ( void )

Set this DataBlock to use short 16 bit floating point values when propagating the value.

void SetInterpolationFilter ( float interpolation = 0.1f )

This sets the interpolation filter factor to use when extrapolating this variable type
0 < interpolation <= 1.0f
1.0f Is very hard interpolation and 0.1f is very soft. 0.1f Is the default.

Parameters

interpolation the interpolation to use

void SetLagged ( const float time = 0.0f )

Allows this replica DataBlock to use interpolation for a period specified by time. This has the effect of permanently lagging the changes made to the variable attached to this DataBlock. This option uses some extra memory to store updates until they can be actioned. This function can be used at any time. Each replica DataBlock can use a different time value. With ReplicaObjects that change owner there may be a pause in updates visible until the new master continues the movement and sends updates. NOTE: If a reflection object ID is set and matches the current session ID the lagged value will be ignored to avoid the update to replicas being lagged twice.

Parameters

time	The time is seconds, so using SetLagged(0.2f) will cause all changes in this variable to appear to be 0.2 seconds behind the master object. Using a value less than or equal to 0.0f will disable this feature.

void SetLinear ( void )

inline

For distance based interpolation this makes the calculation based on a linear formula. The default is linear.

void SetMaxDistance ( float distance = 1.0f )

Sets the maximum distance start point for the maximum error to take effect

Parameters

the distance

void SetMaxError ( float maxerror = 1.0f )

This sets the maximum error that is tolerated for this variable type

Parameters

maxerror the maximum error to tolerate

void SetMinDistance ( float distance = 0.1f )

Sets the minimum distance start point for the minimum error to take effect

Parameters

the distance

void SetMinError ( float minerror = 0.1f )

This sets the minimum error that is tolerated for this variable type

Parameters

minerror the minimum error to tolerate

void SetQuadratic ( void )

inline

For distance based interpolation this makes the calculation based on a quadratic formula. The default is linear.

void SetSnapToDifference ( const float difference = -1.0f )

Allows this replica DataBlock to snap to the extrapolated value if the difference is greater than the configured difference. For a replica DataBlock if the difference between this DataBlock and the extrapolated value is greater than the configured amount then the extrapolated value is applied without any interpolation filter. This option can be changed as often as required and can be configured differently for each peer.

Parameters

difference The default value is -1.0f meaning this feature is disabled. Any value greater than or equal to 0.0f will enable this feature.

void SetTimeDelta ( const float timeDelta = 0.0f )

Sets the amount of time the extrapolation will calculate into the future.

Parameters

timeDelta The time in seconds.

void SetValueFloat ( void )

Set this DataBlock to use full 32 bit floating point values when propagating the value. This is the default option.

void SetValueShortFloat ( void )

Set this DataBlock to use short 16 bit floating point values when propagating the value.

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
