#include <DataBlock_Function.h>

Inheritance diagram for DataBlock_Function:

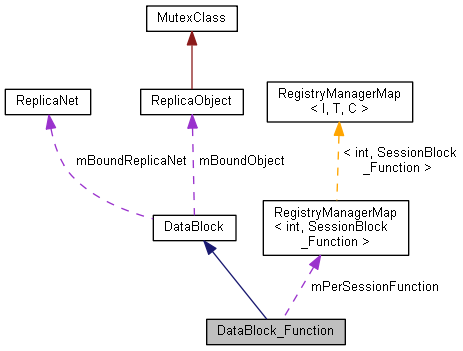

Collaboration diagram for DataBlock_Function:

[legend]

Public Types
typedef void(	tDataBlock_Function_funcp )(void classp, void data, void *thisDataBlock)

Public Types inherited from DataBlock
enum	ContinuityBreakTypes { kStop = 1, kSuddenChange = 2, kTeleport = 4 }

Public Member Functions
	RN_CLASS_MINIMAL_RTTI ()

	DataBlock_Function ()

virtual	~DataBlock_Function ()

virtual void	Poll (DataBlockReason *reason, const bool discardOlderIncluded=false, const unsigned int discardOrder=0)

virtual void	ParseMessage (MessageHelper *message)

void	RegisterInClassPointer (void classp, tDataBlock_Function_funcp funcp)

void	AddFunctionStateChange (void data, int len, const char debug=0)

bool	IsAttached (void *data)

virtual void	OwnerChanged (const int sessionID)

Public Member Functions inherited from DataBlock
virtual int	GetThisClassType (void)

	DataBlock ()

virtual	~DataBlock ()

void	SetVariableName (const char *name=0)

void	BindReplicaNet (ReplicaNet *current)

void	BindReplicaObject (ReplicaObject *object)

void	SetReliableFlag (bool reliable=false)

bool	GetReliableFlag (void) const

void	SetCertainFlag (bool certain=false)

bool	GetCertainFlag (void) const

void	SetOrderedFlag (bool ordered=false)

bool	GetOrderedFlag (void) const

void	SetDiscardOlder (const int windowBits=0)

int	GetDiscardOlder (void) const

void	SetAutomaticUpdatesFlag (bool automatic=true)

bool	GetAutomaticUpdatesFlag (void) const

virtual void	GiveDeltaHint (void *pdata, int dataLen)

void	GiveDeltaHint (float delta)

virtual void	ContinuityBreak (unsigned char breakTypes)

void	SetForceReflectionUpdate (const bool enable=false)

bool	GetForceReflectionUpdate (void)

void	SetReflectionMasterUpdate (const bool enable=false)

bool	GetReflectionMasterUpdate (void)

virtual bool	IsAllocated (void) const

void	SetIsAllocated (const bool isAllocated=true)

void	SetUpdateDelayMinimum (const float delay=0.0f)

float	GetUpdateDelayMinimum (void) const

void	SetForceSendMaximumUpdates (const int updates=0)

int	GetForceSendMaximumUpdates (void) const

void	SetForceSendTimeDelay (const float delay=0.0f)

float	GetForceSendTimeDelay (void) const

void	SetBand (const unsigned int band=0)

unsigned int	GetBand (void) const

bool	ShouldDiscard (MessageHelper *message)

bool	GetDiscardThisUpdate (void) const

Static Public Member Functions
static DataBlock_Function *	Register (void classp, tDataBlock_Function_funcp funcp)

static void	SetSessionIDFilter (const int numSessionIDs=0, const int *sessionIDs=0)

Protected Member Functions
void	FreeSessionBlocks (void)

Protected Member Functions inherited from DataBlock
void	SetID (int id)

const char *	GetROName (ReplicaObject *from=0)

void	EmitBaseDebugInfo (const char name, const char className, DataBlockReason *reason)

void	EmitBaseDebugInfoUpdates (const char name, const char className, DataBlockReason *reason)

std::string	GetVariableName (void)

Protected Attributes
void *	mClassp

tDataBlock_Function_funcp *	mData

RegistryManagerMap< int, SessionBlock_Function >	mPerSessionFunction

std::list< CombinedDataPacket * >	mFunctionStateChanges

Protected Attributes inherited from DataBlock
short	mID

ReplicaNet *	mBoundReplicaNet

ReplicaObject *	mBoundObject

bool	mReliable

bool	mCertain

bool	mOrdered

bool	mAutomaticUpdates

bool	mIsAllocated

bool	mDebugOn

char *	mDebugText

float	mUpdateDelayMinimum

int	mForceSendMaximumUpdates

float	mForceSendTimeDelay

char *	mVariableName

unsigned int	mBand

int	mDiscardOlder

unsigned int	mDiscardOlderMidPoint

unsigned int	mDiscardOlderEndPoint

size_t	mDiscardOlderRealSize

unsigned int	mLocalisedOrderingSent

unsigned int	mLocalisedOrderingReceived

bool	mDiscardThisUpdate

bool	mForceReflectionUpdate

bool	mReflectionMasterUpdate

Static Protected Attributes
static int	mConfiguredNumSessions

static int *	mConfiguredSessionIDs

Detailed Description

This DataBlock derived class enables class member functions to be called on replicas of an object. Deleting a ReplicaObject derived class during a networked function call is not allowed. ReplicaObject::DelayedDelete() should be used instead. This will flag the object for a delete as soon as it is safe to do so.
This DataBlock does not do any latency compensation or prediction.
This DataBlock does not use the rules set by SetUpdateDelayMinimum() and SetForceSendMaximumUpdates() because the frequency of calling member functions and hence the frequency of DataBlock updates is defined by the application.
For security reasons only the master can send function calls to other replicas. A replica does not send any function updates to other replicas directly and will only send to the master. Therefore many of the macros, like ALL_REPLICAS_FUNCTION_CALL(), will operate differently depending on if the object is a master or a replica.
Before the object is published no network class member function calls will be propagated. Using these macros with an unpublished object will only cause the non-network portion to be executed, for example GLOBAL_FUNCTION_CALL will only call the function on the object.
You can use these macros to call network class member functions:
GLOBAL_FUNCTION_CALL()
Example: GLOBAL_FUNCTION_CALL(ASampleMemberFunction(foo,bar,wibble));
From a master this calls the function on the master and all replicas.
From a replica this only calls the function on the current replica and the master.

ALL_REPLICAS_FUNCTION_CALL()
Example: ALL_REPLICAS_FUNCTION_CALL(ASampleMemberFunction(foo));
From a master this calls the function on all replicas.
From a replica this only calls the function on the master.

MASTER_FUNCTION_CALL()
Example: MASTER_FUNCTION_CALL(ASampleMemberFunction(bar,wibble));
From a master this calls the function on all replicas.
From a replica this only calls the function on the master.
ONLY_MASTER_FUNCTION_CALL()
Example: ONLY_MASTER_FUNCTION_CALL(ASampleMemberFunction(bar,wibble));
From a master this calls the function only on the master.
From a replica this only calls the function on the master.
ALL_REPLICAS_FUNCTION_CALL() and MASTER_FUNCTION_CALL() have identical implementation, the naming is different to improve code readability.

NOMINATED_REPLICAS_FUNCTION_CALL()
Example: NOMINATED_REPLICAS_FUNCTION_CALL(numSessionIDs,sessionIDs,APublicFunction(random_int,random_float));
From a master this uses DataBlock_Function::SetSessionIDFilter() to propagate function calls to selected session IDs. From a replica this calls the function on the master regardless of the session ID list.

Constructor & Destructor Documentation

DataBlock_Function ( )

The ctor performs some basic initialisation

virtual ~DataBlock_Function ( )

virtual

The dtor makes sure everything is tidy

Member Function Documentation

bool IsAttached ( void * data )

virtual

Given a data pointer this function identifies if this data block is attached to the pointer.

Returns: Returns true if the data pointer is attached to this data block.

Reimplemented from DataBlock.

virtual void OwnerChanged ( const int sessionID )

virtual

Called by ReplicaNet to indicate a change in owner. If this virtual method is implemented by a derived class the parent method must also be called.

Reimplemented from DataBlock.

virtual void ParseMessage ( MessageHelper * message )

virtual

This parses a message for the derived class of this data block. If this virtual method is implemented by a derived class the parent method should be called. Implementation note: The same amount of data added to the message during the Poll() must equal the length of data retrieved during this function. Care must be taken when implementing functionality such as GetDiscardOlder() to preserve the length of data. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

message The current message buffer that contains the packet data

Reimplemented from DataBlock.

virtual void Poll	(	DataBlockReason *	reason,
		const bool	discardOlderIncluded = `false`,
		const unsigned int	discardOrder = `0`
	)

virtual

A poll function that is called by ReplicaNet to check for updates to this particular data block. If this virtual method is implemented by a derived class the parent method should be called before a data packet is created. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

reason	the reason code that is passed in to this class to enable a response to be calculated
discardOlderIncluded	When true and using SetDiscardOlder() this gives a hint to the DataBlock that the derived class has filled in a valid value for discardOrder. The default value is false and the DataBlock will use a global discard order seqeunce.
discardOrder	When using SetDiscardOlder() and discardOlderIncluded is true this must contain a valid order sequence number for the update. The sequence should be unique for each target sessionID for the update. Since the sequence number is local for each target sessionID the window size for SetDiscardOlder() can be smaller.

Reimplemented from DataBlock.

static DataBlock_Function* Register	(	void *	classp,
		tDataBlock_Function_funcp *	funcp
	)

static

This registers the memory area with this data block type and returns a new pointer

Parameters

classp	is the pointer to this class that is passed through the message pipeline
funcp	the actual function pointer to call that cracks the message

Returns: Returns a pointer that can be used to attach to a ReplicaObject

void RegisterInClassPointer	(	void *	classp,
		tDataBlock_Function_funcp *	funcp
	)

inline

This registers the memory area with this data block type. This is used when the memory is in datablocks that are allocated as part of a bigger class.

Parameters

classp	is the pointer to this class that is passed through the message pipeline
funcp	the actual function pointer to call that cracks the message

static void SetSessionIDFilter	(	const int	numSessionIDs = `0`,
		const int *	sessionIDs = `0`
	)

static

This configures the next networked function call from a master object to send the function call to the nominated sessionIDs. After the function call is completed all subsequent network function calls are sent without this filter unless this function is used. The NOMINATED_REPLICAS_FUNCTION_CALL() macro also uses this function.
Care must be taken when using this static function that multi-threaded ReplicaObject derived classes do not interrupt calls to this function and the subsequent network function call. The array pointed to by this function must persist until the subsequent network function call.

Parameters

numSessionIDs	The number of session IDs in the array.
sessionIDs	An array of session IDs that will receive the next network function call.
